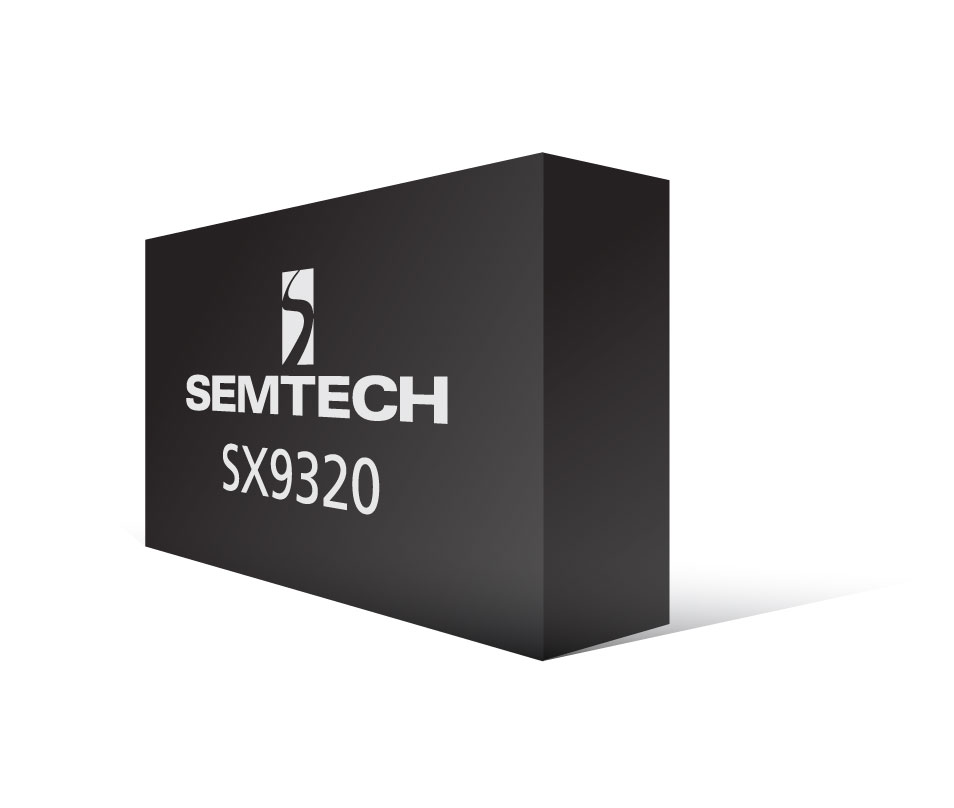

SX9320
SX9320 is a member of the Semtech PerSe Connect product line which enhances the connectivity for wireless devices. It offers 2-channels to support accurate human sensing in mobile devices for radio frequency (RF) performance improvement and Specific Absorption Rate (SAR) compliance. Its tiny footprint and ultra-low power consumption make it a good solution for smartphones, tablets and laptops.
Features
- 2-channel sensor input specially designed for SAR applications
- 1.7-2V input supply voltage
- High resolution sensing
- Built-in regulator
- Semtech patented smart engine
- Advanced temperature compensation
- Automatic calibration
- Ultra-low power consumption
- 400kHz I2C serial interface
- Operating temperature (-40 °C to +85 °C)
- Tiny footprint
- Pb & halogen-free
- RoHS/WEEE-compliant
- Smartphones (5G sub 6/4G/Wi-Fi)
- Tablets (5G sub 6/4G/Wi-Fi)
- Laptops (5G sub 6/4G/Wi-Fi)
- Other wireless portable devices
Applications
Packaging
- WLCSP
Order Codes
- SX9320ICSTRT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SX9320
Part Description
ULTRA LOW POWER, SMART PROXIMITY SENSOR FOR SAR
# of leads
8
Package Type
WLCSP-8
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
SnAgCu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
