Overview

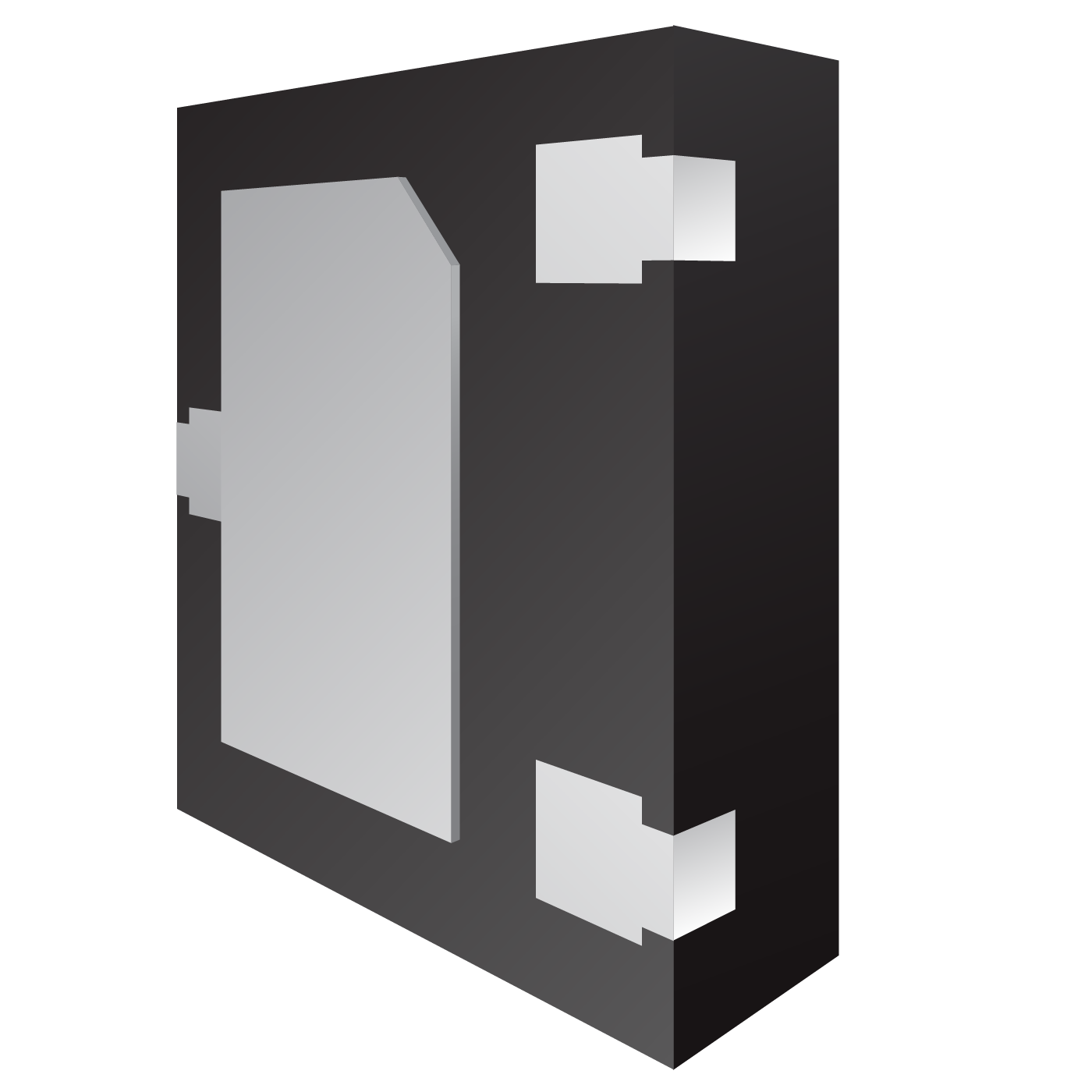

PClamp® TVS diodes are designed to protect sensitive electronics from damage or latch-up due to ESD. These state-of-the-art devices utilize solid-state silicon-avalanche technology for superior clamping performance. They have been optimized for ESD protection of power lines in cellular phones, industrial applications and other portable electronics. PClamp3001P is in a DFN 2.00 x 2.00 x 0.55mm 3-Lead package. Each device may be used to meet the ESD immunity requirements of IEC 61000-4-2 (±30kV contact and air discharge). PClamp3001P also provides high surge current capability (200A, tₚ = 8/20µs).Features
- Transient protection for VBUS lines to IEC 61000-4-2 (ESD): ±30kV (Contact), ±30kV (Air)
- IEC 61000-4-5 (Lightning): 200A (tₚ = 8/20µs)
- Small package
- Protects one power line
- Low ESD clamping voltage
- Working voltage: 30V
- Low leakage current
- Low dynamic resistance: 0.12Ω (typ)
- Solid-state silicon-avalanche technology
Packaging
Order Codes
PB Free/ROHS
Learn More →
| Documents | Release Date | Type |  |
|---|---|---|---|
| PCLAMP3001P Datasheet | 2026-08-13 | | |
Applications
- VBUS
- Portables
- Industrial Equipment
- Wearables
