uClamp1521ZV
μClamp® series of transient voltage suppressor (TVS) arrays are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD) and surge. They feature large cross-sectional area junctions for conducting high transient currents. μClamp products offer desirable characteristics for board-level protection including fast response time, low operating and clamping voltage and no device degradation.
Features
- High ESD withstand voltage: ±30kV (contact & aIr) per IEC 61000-4-2
- High peak pulse current capability: 18A (tp = 8/20μs)
- Ultra-small package(1.0 x 0.6 x 0.25mm)
- Protects one I/O or power line
- Low ESD clamping voltage
- Working voltage: ± 15V
- Solid-state silicon-avalanche technology
- Pb-free, Halogen-free, RoHS/WEEE-compliant
- Cellular handsets & accessories
- Battery protection
- Notebooks & handhelds
- Audio lines
Applications
Packaging

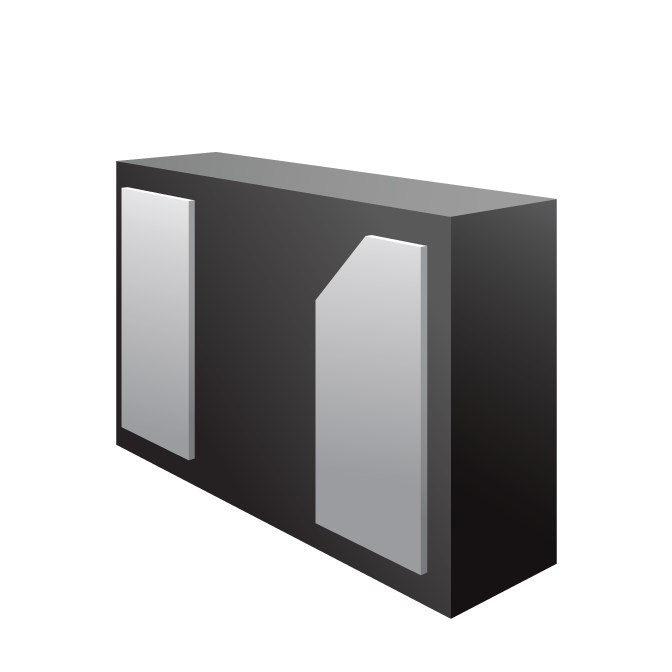

- DFN 1.0 x 0.6 x 0.25mm-2 Lead – 15,000 pcs
Order Codes
- uClamp1521ZVTFT
Pb(Lead)-Free/RoHS-Green Info
