The HotSwitch platform provides an enhanced shield against inrush current, overvoltage, under voltage, reverse current, short circuit, and over-temperature faults. These devices minimize the on-resistance of the MOSFETs and provide enhanced switching performance with low conduction loss.

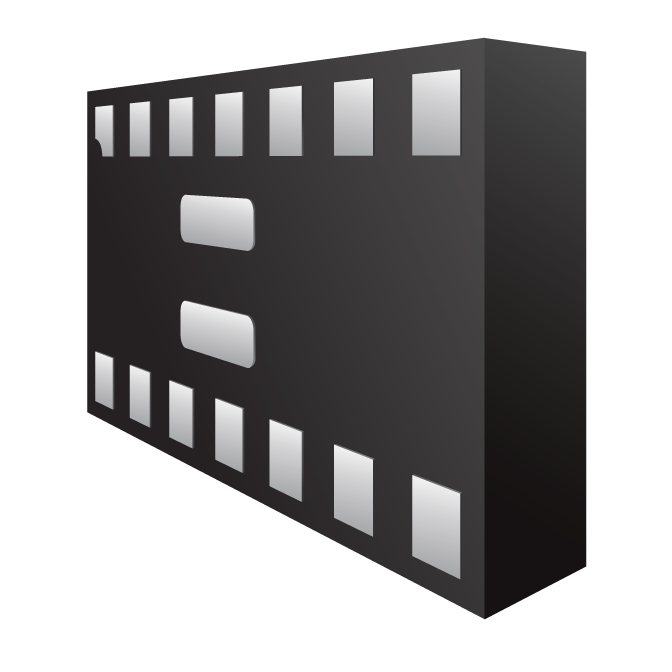

22V, 3.1A HotSwitch® eFuse with SurgeSwitch™ Protection

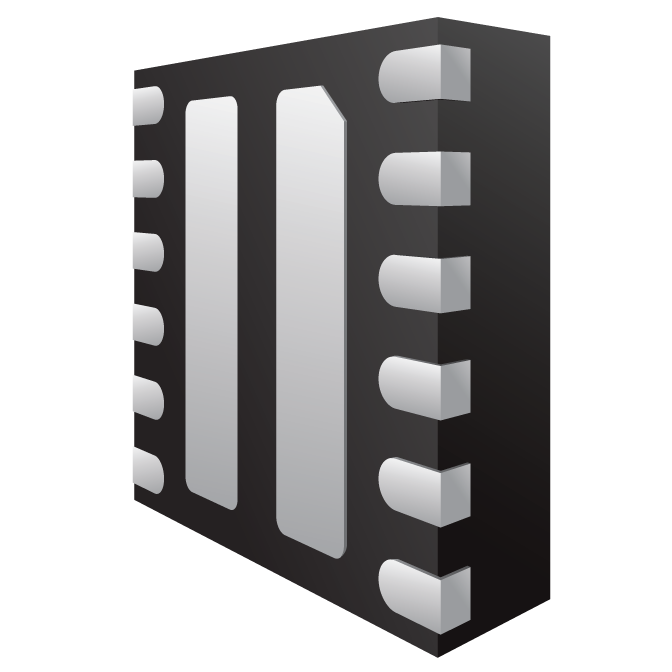

29V 5A Load Protection HotSwitch® With Adjustable OVP, OCP and SS
