Not Recommended for New Designs

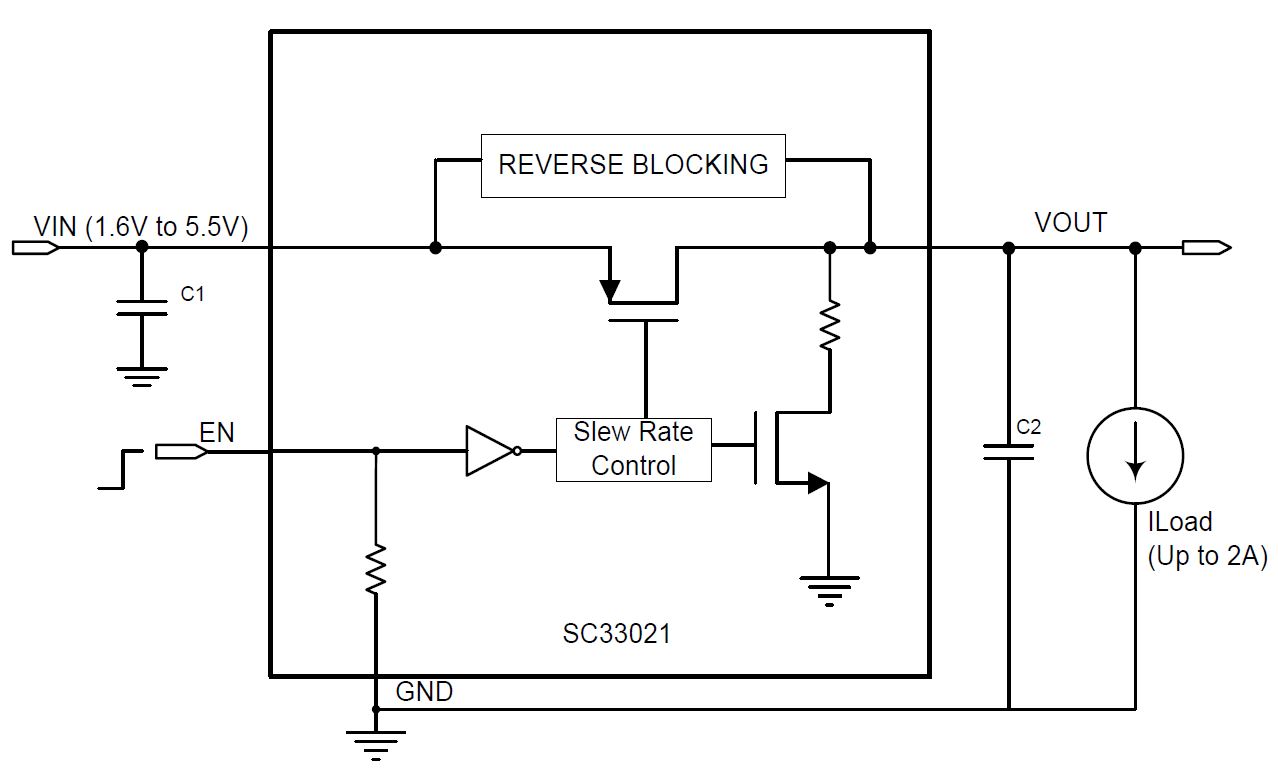

Not Recommended for New Designs. Datasheet is for information purposes only.The SC33021 is an integrated 2A Load Switch with reverse current blocking. It operates from a 1.6V to 5.5V input supply. The SC33021 includes an automatic output discharge.
- Input Voltage Range – 1.6V to 5.5V
- 2A Continuous Output Current
- Ultra Low Ron – 32m ohm
- Reverse Current Blocking
- Automatic Output Discharge
- Low Quiescent Current – 0.8μA
- Low Shutdown Current – 0.3μA
- Internal Soft Start
- Hardened ESD Protection 5kV
- Package: CSP – 0.9mm x 0.9mm 4–Bump
- Wearable Electronics
- Tablet PCs, eReaders
- Notebook PCs, Ultrabooks
- Battery Powered Equipment
- Other Portable Devices
- CSP – 0.9mm x 0.9mm 4–Bump - 5,000 pcs, tape and reel only.
- SC33021CSTRT - Lead-free package only. Device is WEEE and RoHS compliant, and halogen free.
Base Part Number (1)
2A LOAD SWITCH WITH REVERSE CURRENT BLOCKING
# of leads
Reflow Temp °C (3)
Lead or Ball Finish
REACH SVH C(223) EC1907/2006 (18)
JIG 101 A & B (12)
RoHS 2/3 Amend 2015/863 (7)
WEEE 2012/19/EU (19)
China RoHS 2 GB/T 26572-2011
Halogen Free / Low IEC 61249-2-21/JS709C (20)
Proposition 65 (21)
Packaging Material 94/62/EC (17)
RoHS Compliant by Exception (8)
Declarations and Reports
Please consult with your Semtech Sales Rep
