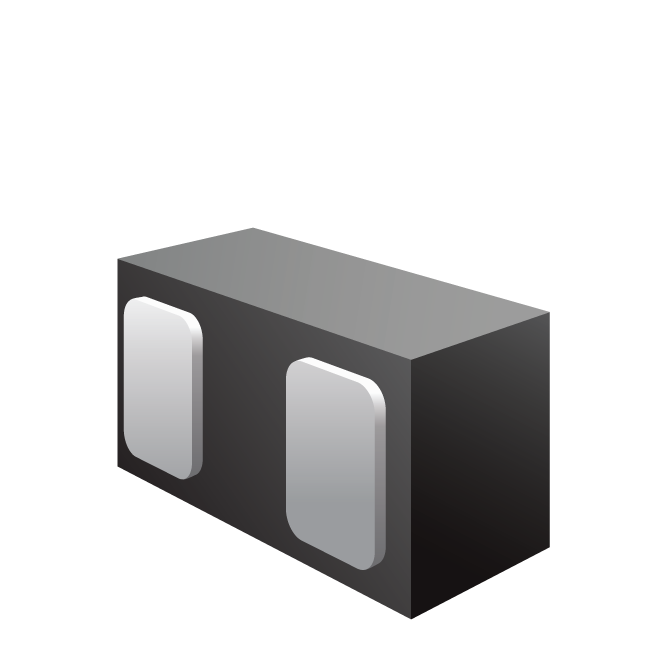

RClamp®3391ZC is an ultra-low capacitance FemtoClamp® ESD protection device specifically designed to protect high-speed differential lines. It offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
- ESD and EOS Protection
- ESD withstand voltage
- IEC 61000-4-2 (ESD) ±8kV (contact), ±15kV (air)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Ultra-Low capacitance: 0.20pF Maximum
- Small Pacakge (0.60 x 0.30 x 0.25mm)
- Protects one high-speed data line
- Working voltage: 3.3V
- Low reverse leakage current: 50nA max at VR=3.3V
- Low insertion loss: 0.28dB (Typical) at 5GHZ
- Large operating bandwidth: 14.6GHz
- Thunderbolt 3
- USB 3.1 and USB 3.0
- HDMI 1.4 and HDMI 2.0
- USB Type-C
- DFN 0.60x0.30x0.25mm-2 Lead
