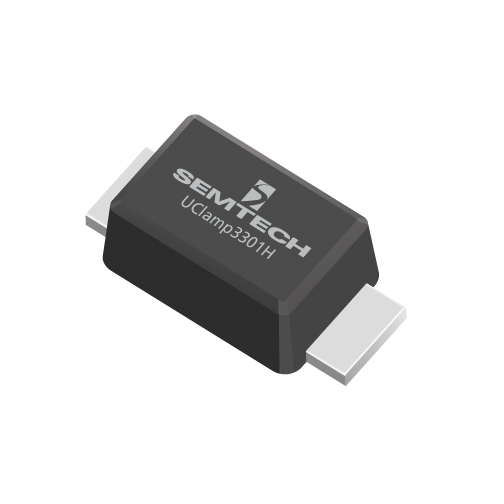

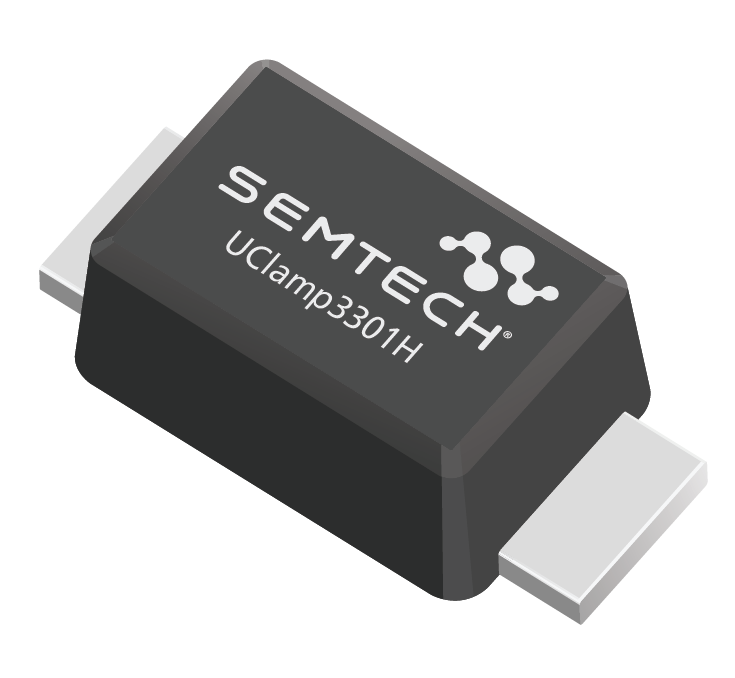

The μClamp series of Transient Voltage Suppressors (TVS) are designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and PDAs.
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ± 20kV (air), ± 10kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- Cable Discharge Event (CDE)

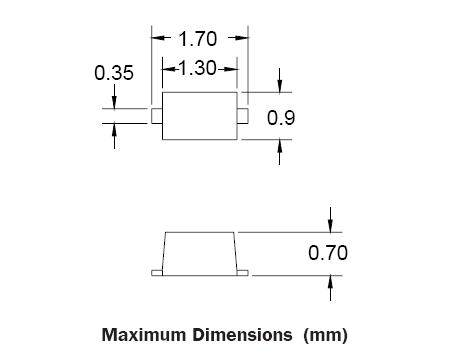

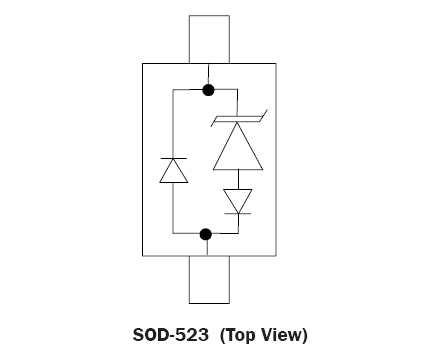

- Ultra-small SOD-523 package (1.7 x 0.9 x 0.7 mm)
- Protects one I/O
- Low clamping voltage
- Working voltage: 3.3V
- Low leakage current
- Solid-state silicon-avalanche technology
- Lead-Free, RoHS and WEEE Compliant
- Cellular handsets & accessories
- Cordless phones
- Personal digital assistants (PDAs)
- Notebooks & handhelds
- Portable instrumentation
- Digital cameras
- MP3 players
- Package Minimum Tape & Reel Only
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
